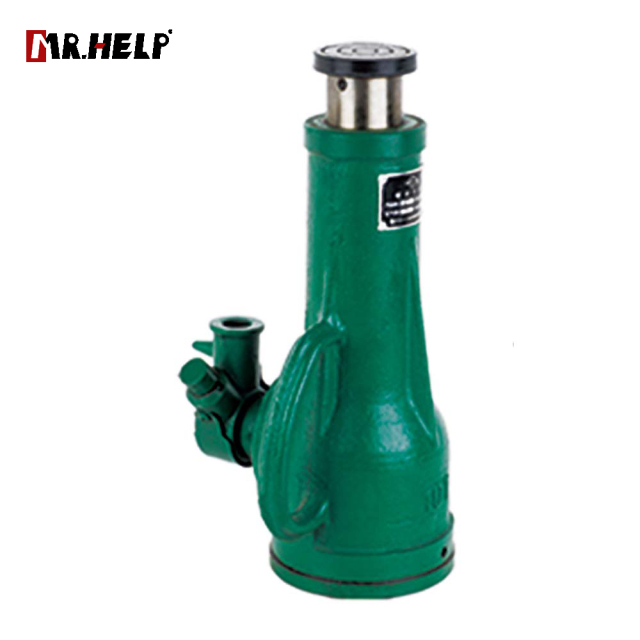

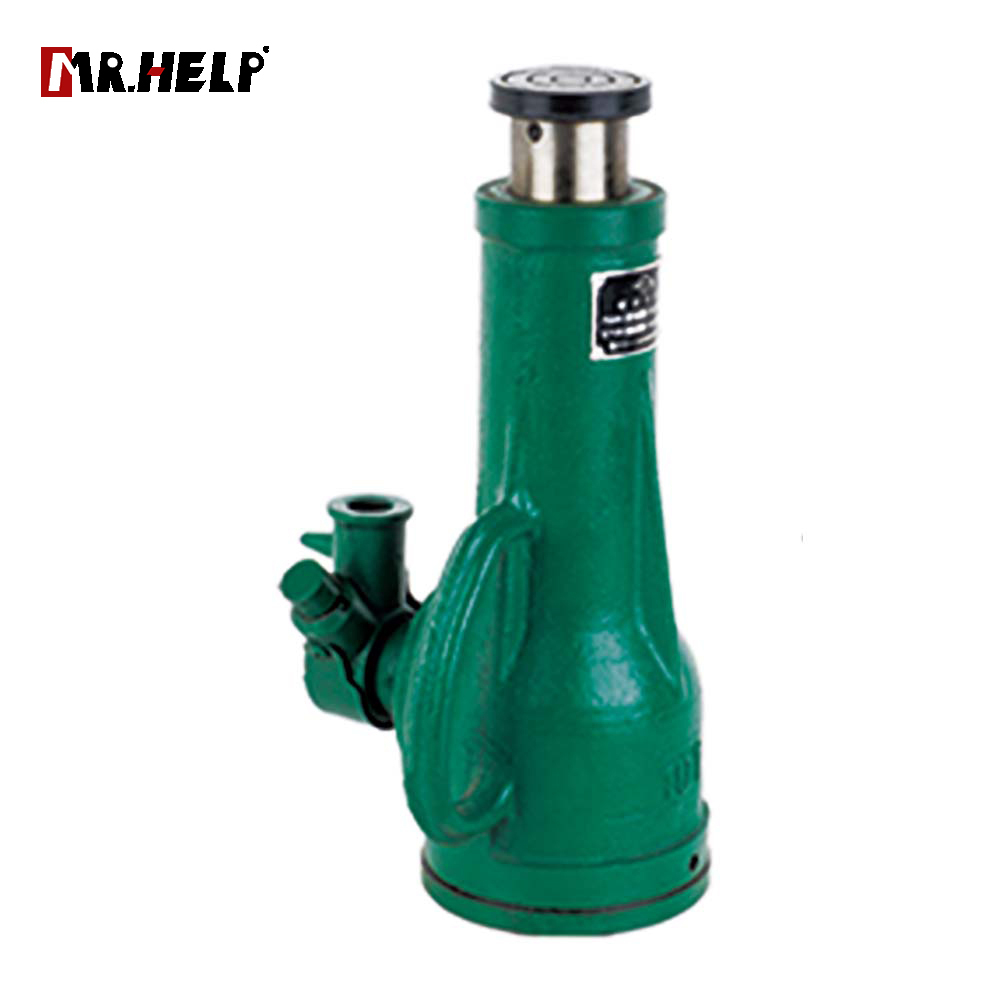

Screw jack, 16T, Lifting range:325-505mm

Name: Screw jack, 16T, Lifting range:325-505mm
Brand: ANHUI HUAFENG IMP. & EXP. CO.,LTD
SKU: HF1609
Availability: InStock
Rating: 5 (1 reviews)

No.HF1609

Package

color box

Capacity (ton)

Min.H. (mm)

325

Lifting. H.(mm)

180

Max.H. (mm)

505

N.W.(kg)

QTY/CTN (pcs)

Package Size(mm)

340X310X165

G.W(kg)

20'FCL (pcs)

1200

SPECIFICATION

Model	Package	Capacity (ton)	Min.H.(mm)	Max.H. (mm)	N.W.(kg)	QTY/CTN (pcs)	Package Size(mm)	G.W(kg)	20'FCL (pcs)
HF0209-320	color box	2	160	320	3.7	6	13585155	23.4	4300
HF0209-385	color box	2	185	385	4	6	162120182	25.8	4300
HF0209-480	color box	2	210	480	4.3	6	162120182	27	3900
HF0309	color box	3.2	220	330	4.8	5	500230125	27	3000
HF0509	color box	5	250	380	7	5	600265130	39	2000
HF0809	color box	8	260	400	7.2	5	640280150	40	1800
HF1009	color box	10	280	430	9.2	5	600210140	50	1560
HF1009D	color box	10	192	372	6.4	5	660300155	35	2500
HF1609	color box	16	325	505	12	2	*340310165*	27	1200
HF2009	color box	20	325	505	12.5	2	340310165	28	1160
HF2509	color box	25	262	387	12	2	320275165	27	1200
HF3209	color box	32	395	595	18	2	420360200	41.5	680
HF3209D	color box	32	320	500	16	2	340370170	35.5	810
HF5009	color box	50	452	702	33	1	460300230	37	720
HF5009D	color box	50	310	460	27	1	340290220	30	850
