Home > All Collections > Pump > Pump, HF7001A.1600ML
  • Pump, HF7001A.1600ML
  • Pump, HF7001A.1600ML

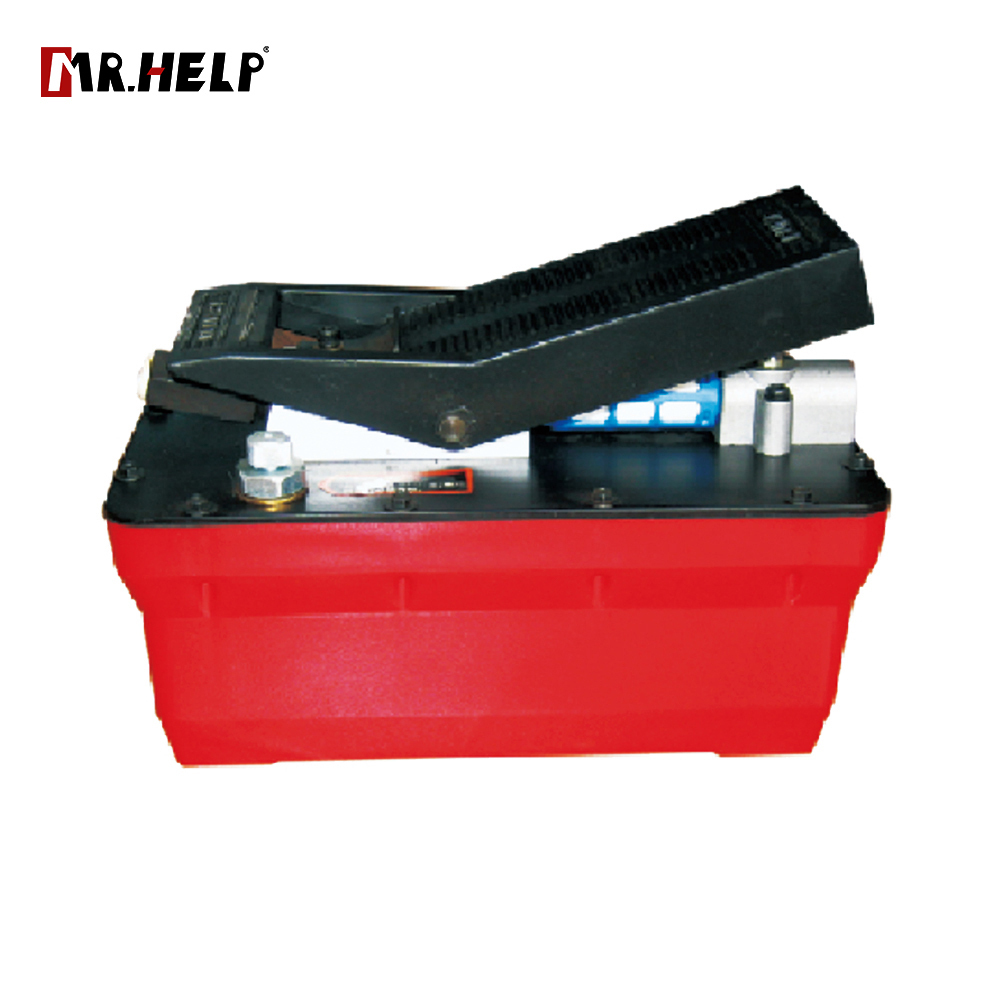

Pump, HF7001A.1600ML

No.HF7001A
Model
HF7001A
Usable Oil Capacity(ml)
1600
Rated Pressure (psl)
10000
Output Flow Rate(in/min)
42.7(Noload)/11(Load)
Input Air Pressure(psl)
90-140
Output Port Threads
1/4''-18Npt
N.W (kg)
6.5
G.W (kg)
7
Package Size(mm)
280x150x200
CONTACT US
  • Pump, HF7001A.1600ML

SPECIFICATION

​
Model Usable Oil Capacity Rated Pressure(psl) Output Flow Rate(in/min) Input Air Pressure(psl) Output Port Threads N.W.(kg) G.W(kg) Package Size
(mm)
HF7001A 1600 10000 42.7(Noload)/11(Load) 90-140 1/4''-18Npt 6.5 7 280X150X200
HF7001B 690 10000 24.4(Noload)/7.3(Load) 100-120 1/4''-18Npt 7 7.5 395X185X185
HF7001C 2300 10000 42.7(Noload)/11(Load) 90-140 1/4''-18Npt 10.5 11 330X185X200
​​
​​​​​​​​​​​​​
