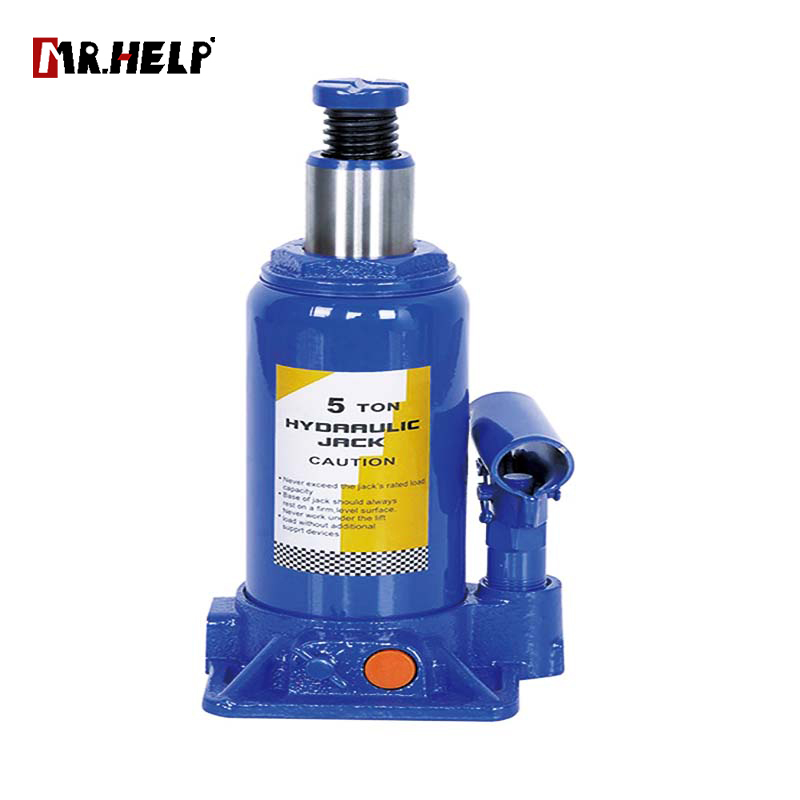

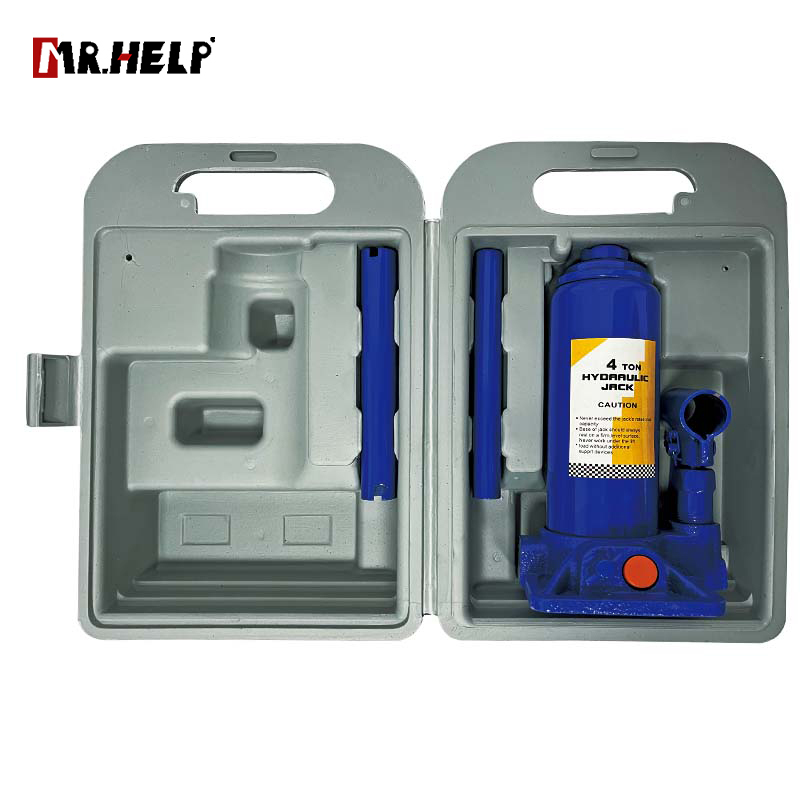

Bottle jack with safety valve, 5-6T, Lifting range: 197-382mm

Name: Bottle jack with safety valve, 5-6T, Lifting range: 197-382mm
Brand: ANHUI HUAFENG IMP. & EXP. CO.,LTD
SKU: HF0605
Availability: InStock
Rating: 5 (1 reviews)

No.HF0605

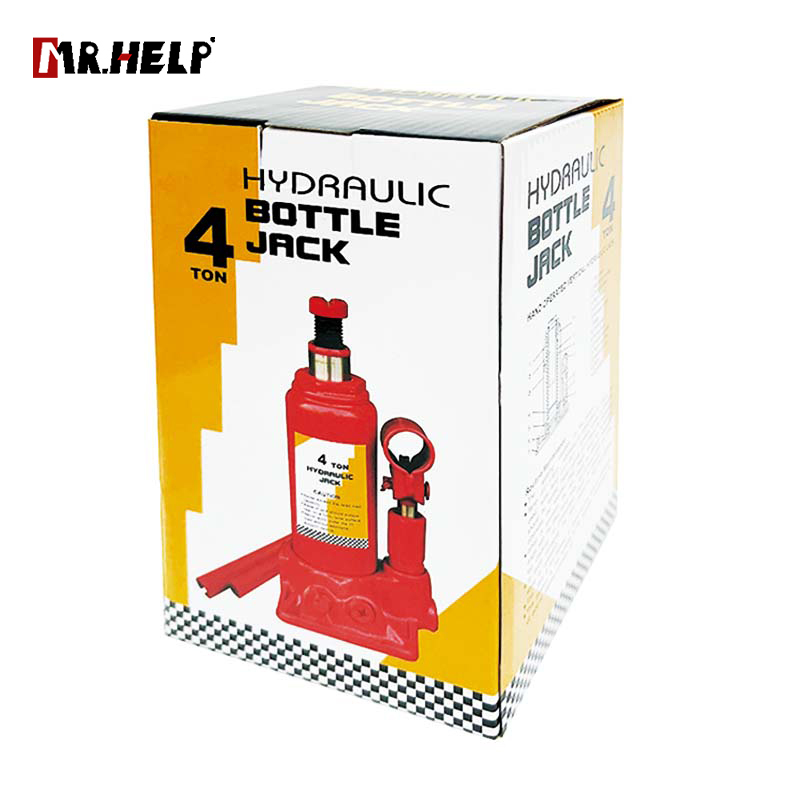

Package

color box

Capacity (ton)

5-6

Min.H. (mm)

197

Lifting. H.(mm)

125

Adj.H.(mm)

Max.H. (mm)

382

N.W.(kg)

4.4

QTY/CTN (pcs)

Package Size(mm)

370X250X240

G.W(kg)

27.4

20'FCL (pcs)

4200

SPECIFICATION

Model	Package	Capacity (ton)	Min.H.(mm)	Max.H. (mm)	N.W.(kg)	QTY/CTN (pcs)	Package Size(mm)	G.W(kg)	20'FCL (pcs)
HF0205	color box	2	158	308	2.3	10	490225200	24	7800
HF0305	color box	3-4	180	340	3	8	480250200	25	5400
HF0405	color box	3-4	195	380	3.2	8	480250220	26.6	5400
HF0605	color box	5-6	197	382	4.4	6	*370250240*	27.4	4200
HF0805	color box	8	205	390	5.2	4	270270230	21.8	3340
HF1005	color box	10	205	390	5.6	4	290290250	23.4	3000
HF1205	color box	12	215	400	6.5	2	300160250	14	2500
HF1605	color box	15-16	225	425	7.5	2	310160250	16	2250
HF2005	color box	20	244	449	10.5	2	325185265	22	1800
HF2505	color box	25	244	389	11.5	2	327190305	24	1500
HF3205A	color box	30	285	465	13.5	2	370190305	28	1500
HF3205	color box	32	285	465	21	1	210170305	22	1240
HF5005	carton	50	300	480	30	1	240210320	31	1060
HF8005	wooden case	80	310	490	50	1	380260365	52	360
HF10005	wooden case	100	330	510	75	1	380260365	78	240
HF20005	wooden case	200	360	540	135	1	430360400	140	130
HF0205B	blow case	2	158	308	2.3	6	345345255	14.8	4800
HF0305B	blow case	3-4	180	340	3	6	385350295	19	4200
HF0405B	blow case	3-4	195	380	3.2	6	385350295	20.2	4200
HF0605B	blow case	5-6	197	382	4.4	4	395265305	18.6	3500
HF0805B	blow case	8	205	390	5.2	4	395265305	21.8	3500
HF1005B	blow case	10	205	390	5.6	2	315225325	12.2	1280
HF1205B	blow case	12	215	400	6..5	2	315225325	14	1280
