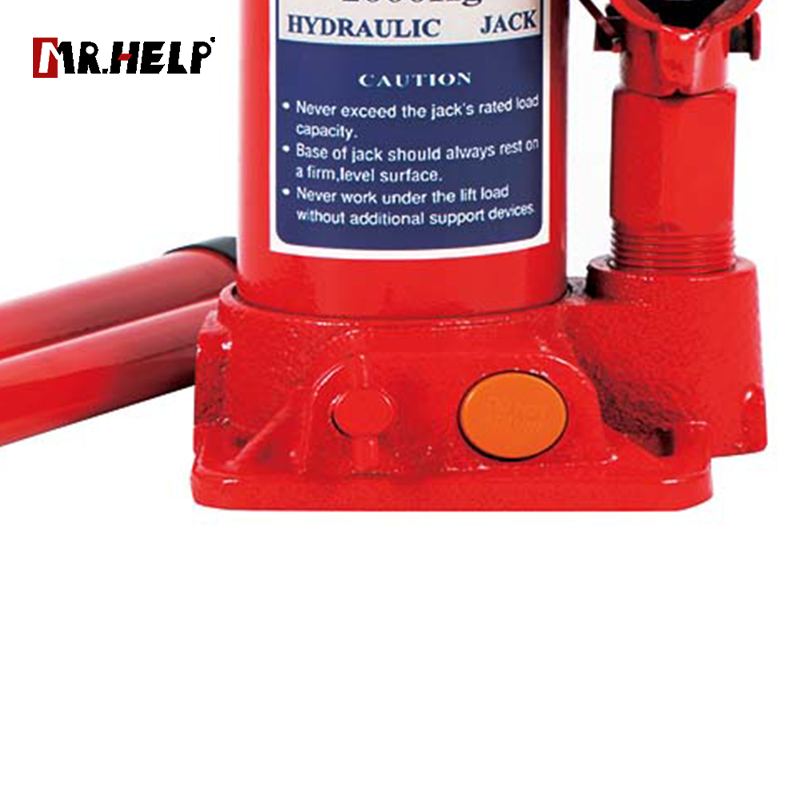

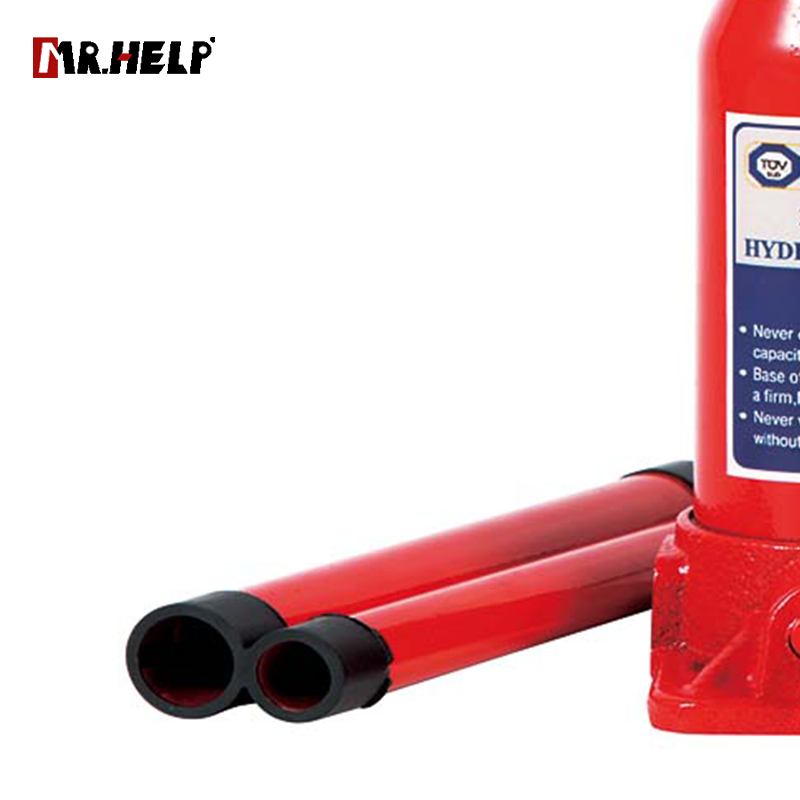

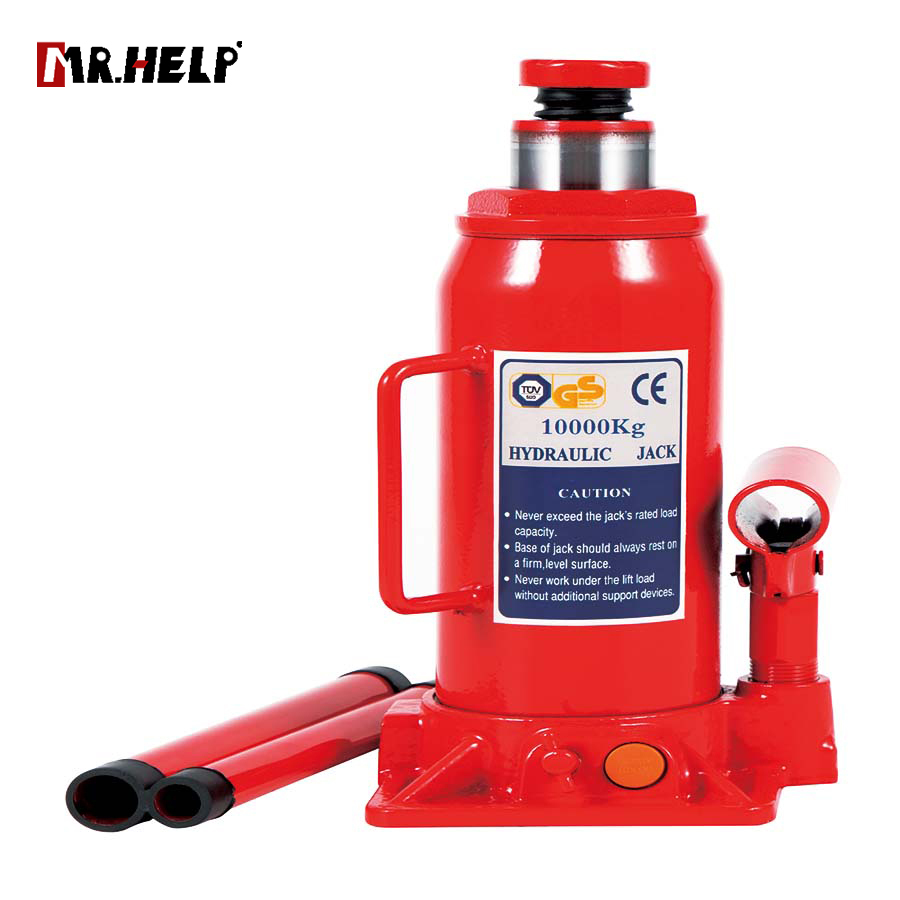

Bottle jack with safety valve, 10T, Lifting range: 230-460mm

Name: Bottle jack with safety valve, 10T, Lifting range: 230-460mm
Brand: ANHUI HUAFENG IMP. & EXP. CO.,LTD
SKU: HF1006
Availability: InStock
Rating: 5 (1 reviews)

No.HF1006

Package

color box

Capacity (ton)

Min.H. (mm)

230

Lifting. H.(mm)

150

Adj.H.(mm)

Max.H. (mm)

460

N.W.(kg)

QTY/CTN (pcs)

Package Size(mm)

290X290X255

G.W(kg)

20'FCL (pcs)

2500

SPECIFICATION

Model	Package	Capacity (ton)	Min.H.(mm)	Max.H. (mm)	N.W.(kg)	QTY/CTN (pcs)	Package Size(mm)	G.W(kg)	20'FCL (pcs)
HF0206	color box	2	181	347	2.5	10	490225200	26	6150
HF0406	color box	3-4	195	373	3.2	8	480250225	26.6	5000
HF0606	color box	5-6	216	413	4.3	6	370250240	26.8	3670
HF0806	color box	8	230	457	5.6	4	270270255	23.4	2750
HF1006	color box	10	230	460	6	4	*290290255*	25	2500
HF1206	color box	12	230	465	7.3	2	300160255	15.6	2120
HF1606	color box	15-16	230	460	8.2	2	320170255	17.4	1920
HF2006	color box	20	244	449	11	2	325185265	23	1500
HF3006	color box	30-32	245	385	19	1	195180270	20	800
HF5006	carton	50	236	356	26	1	270240270	27	560
HF0206B	blow case	2	181	347	2.5	6	345345285	16	4950
HF0406B	blow case	3-4	195	373	3.3	6	385350295	20.8	4200
HF0606B	blow case	5-6	216	413	4.5	4	395265305	19	3480
HF0806B	blow case	8	230	457	5.8	2	315225325	12.6	1280
HF1006B	blow case	10	230	460	6.5	2	315225325	14	1280
HF1206B	blow case	12	230	465	7.5	2	315225325	16	1280
