Home > All Collections > HYDRAULIC BOTTLE JACK > Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm

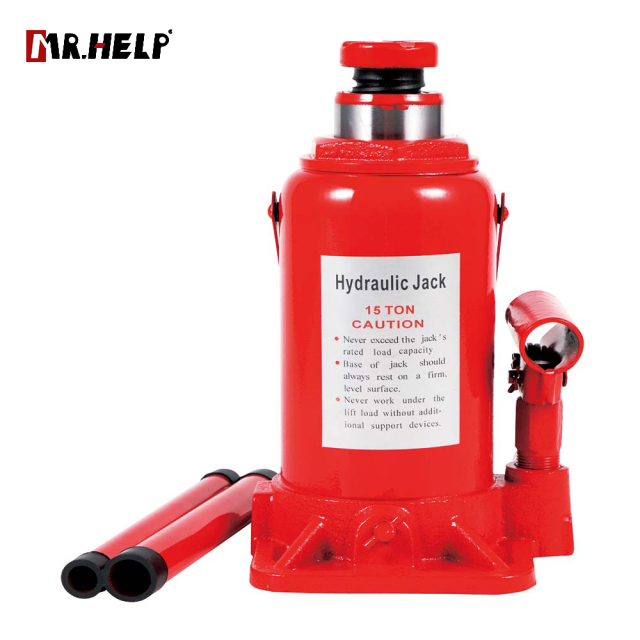

Bottle jack,16T,225-425mm

No.HF1602
Package
Color Box
Capacity（ton)
15-16
Min.H.(mm）
225
Lifting.H.(mm)
140
Adj.H.(mm)
60
Max.H.（mm）
425
N.W.(kg)
7.5
QTY/CTN(pcs)
2
Package Size（mm）
310x160x250
G.W.(kg)
16
20'FCL(pcs)
2250
CONTACT US
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm
  • Bottle jack,16T,225-425mm

SPECIFICATION

​
Model Package Capacity (ton) Min.H.(mm) Max.H.  (mm) N.W.(kg) QTY/CTN (pcs) Package Size(mm) G.W(kg) 20'FCL (pcs)
HF0202 color box 2 158 308 2.3 10 490*225*200 24 7800
HF0302 color box 3-4 180 340 3 8 480*250*200 25 5400
HF0402 color box 3-4 195 380 3.3 8 480*250*220 27.4 5400
HF0602 color box 5-6 197 382 4.4 6 370*250*240 27.4 4200
HF0802 color box 8 205 390 5 4 270*270*230 21 3340
HF1002 color box 10 205 390 5.6 4 290*290*250 23.4 3000
HF1202 color box 12 215 400 6.5 2 300*160*250 14 2500
HF1602 color box 15-16 225 425 7.5 2 310*160*250 16 2250
HF2002 color box 20 244 449 10 2 325*185*265 21 1500
HF2502 color box 25 244 389 11.5 2 320*190*305 24 1500
HF3202  color box 30-32 285 465 21 1 210*170*305 22 880
HF3202A color box 30-32 285 465 13 2 370*190*305 27 1500
HF5002 carton 50 300 480 30 1 240*210*320 31 540
HF8002 wooden case 80 310 490 50 1 380*260*365 52 360
HF10002 wooden case 100 340 520 75 1 380*260*365 78 240
HF20002 wooden case 200 360 540 135 1 430*360*400 140 130
HF0202B blow case 2 158 308 2.3 6 345*345*255 14.8 4800
HF0302B blow case 3-4 180 340 3 6 385*350*295 19 4200
HF0402B blow case 3-4 195 380 3.3 6 385*350*295 20.8 4200
HF0602B blow case 5-6 197 382 4.4 4 395*265*305 18.6 3500
HF0802B blow case 8 205 390 5 4 395*265*305 21 3500
HF1002B blow case 10 205 390 5.6 2 315*225*325 12.2 1280
HF1202B blow case 12 215 400 6.5 2 315*225*325 14 1280
​
