Home > All Collections > Air Bottle Jack > Air Bottle jack, HF3207Q, Lifting Wt (ton):32T
  • Air Bottle jack, HF3207Q, Lifting Wt (ton):32T
  • Air Bottle jack, HF3207Q, Lifting Wt (ton):32T

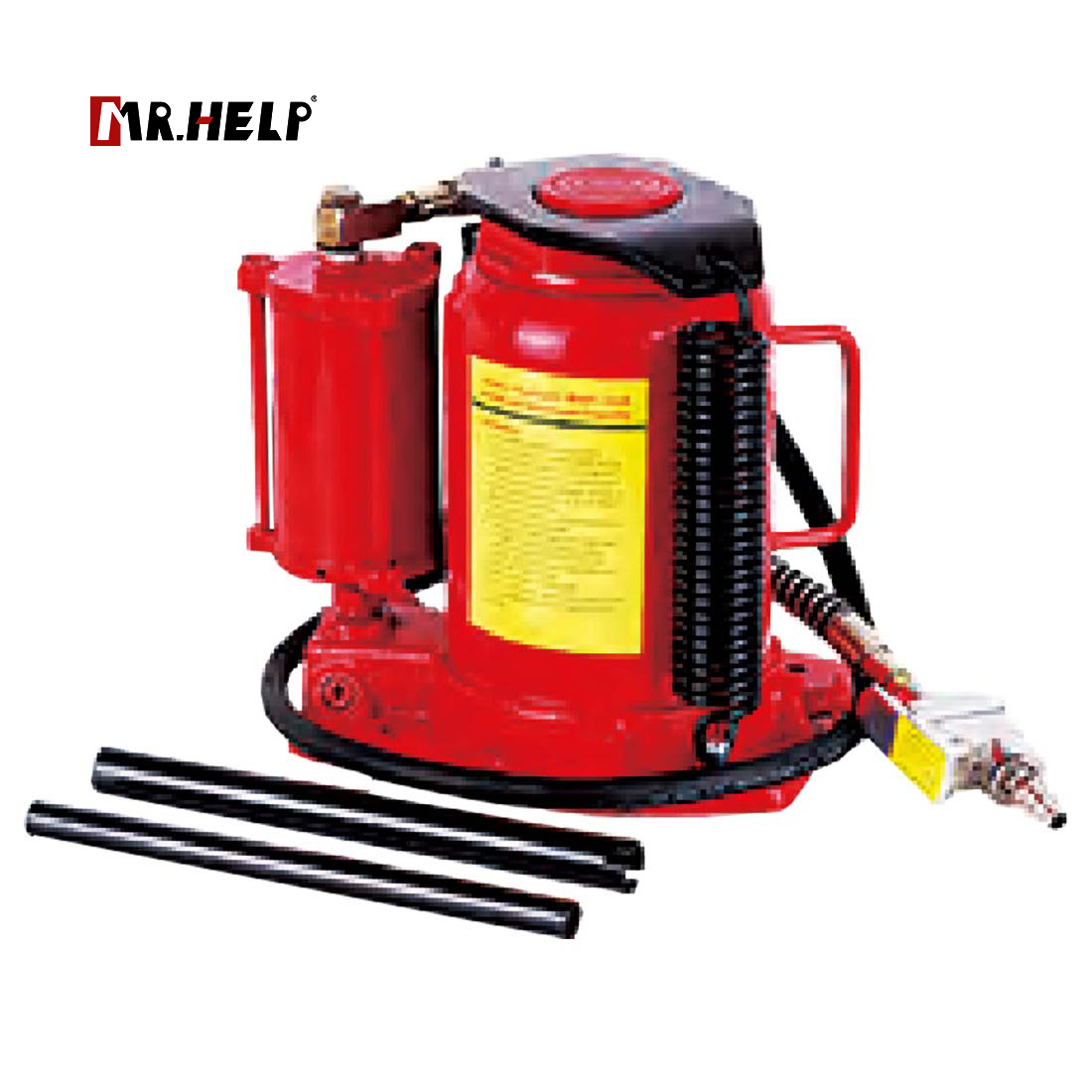

Air Bottle jack, HF3207Q, Lifting Wt (ton):32T

No.HF3207Q
Package
Carton
Model
HF3207Q
Lifting Wt (ton)
32
Lifting Range (mm)
260-415
N.W (kg)
21
G.W (kg)
22
Package Size(mm)
300x220x270
Qty/Ctn(pcs)
1
20' Container(pcs)
700
CONTACT US
  • Air Bottle jack, HF3207Q, Lifting Wt (ton):32T

SPECIFICATION

​
Model Capacity
(ton)		 Min.H.
(mm)		 Max.H.
 (mm)		 N.W.(kg) G.W(kg) Package Quantity
(pc)		 Measurement
(mm)		 20'Container
HF0507Q 5 210 430 6 7 Carton 1 180*150*220 2100
HF1207Q 12 250 495 12 13 Carton 1 240*180*290 1350
HF2007Q 20 260 510 16 17 Carton 1 280*200*280 1000
HF2007QL 20 210 390 15 16 Carton 1 260*210*230 1150
HF3207Q 32 260 415 21 22 Carton 1 300*220*270 700
HF3207QH 30 250+25 400+25 21 22 Carton 1 290*220*270 700
HF5007Q-1 50 260 420 34 35 Carton 1 370*300*290 650
HF2207Q 22 275+20 435+100 36 38 Carton 1 640*350*300 410
HF3007Q-1 30 275+20 527+100 42 44 Carton 1 640*350*340 350
HF3007Q-2 35 275+20 527+100 42 44 Carton 1 640*350*340 350
HF5007Q 50 260+20 420+100 44.5 46 Carton 1 640*350*350 345
​​
​​​​​​​​​​​​​
